KIRK Wireless Server 6000 Installation and Configuration Guide

3–6

Sync Chain With Alternative Sync Ways

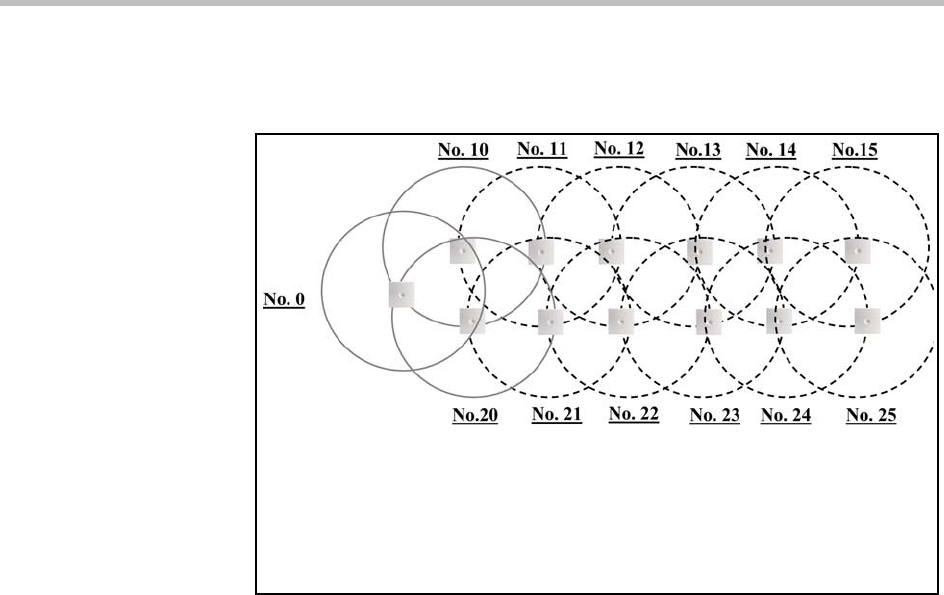

Figure 3-3 Synchronization Chain with Alternative Sync Ways

• No. 0 is the Sync Master (can be numbered 0-255).

• No. 10 and No. 20: Primary and alternative sync on No. 0.

• No. 11: Primary sync on No. 10 and alternative sync on No. 21.

• No. 21: Primary sync on No. 20 and alternative sync on No. 11.
