Chapter 1- Hardware Description

1-32

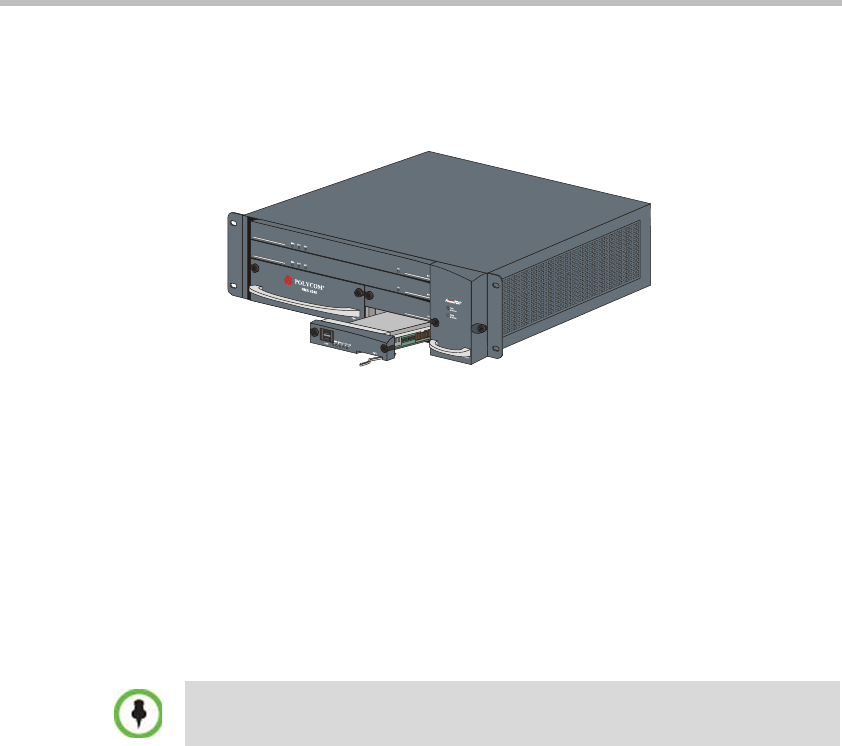

3 Use the metal ejector levers to pull the CNTL Module out of its slot in

the Backplane.

4 Carefully slide the

CNTL Module out through the front panel.

5 On the

CNTL Module to be installed, move the ejector lever to the

fully open position.

6 Slide in the replacement

CNTL Module.

7 Push the

CNTL Module firmly into the Backplane, making sure it is

properly seated in its slot.

8 Ensure that the metal ejector levers are fully retracted into their

housings.

9 Tighten the captive screws on the front panel of the RMX 2000 that

secure the Functional

CNTL Module.

10 Turn ON the RMX 2000.

For more information on the Card Configuration Modes after reset, see "MPM/

MPM+ and MPMx Configuration Modes” on page 1-22.
