Advanced Applications
9 - 11
SoundStructure Studio Steps
The steps to create this project are shown in the following figures. The names
for the channels are the names that SoundStructure Studio defines.

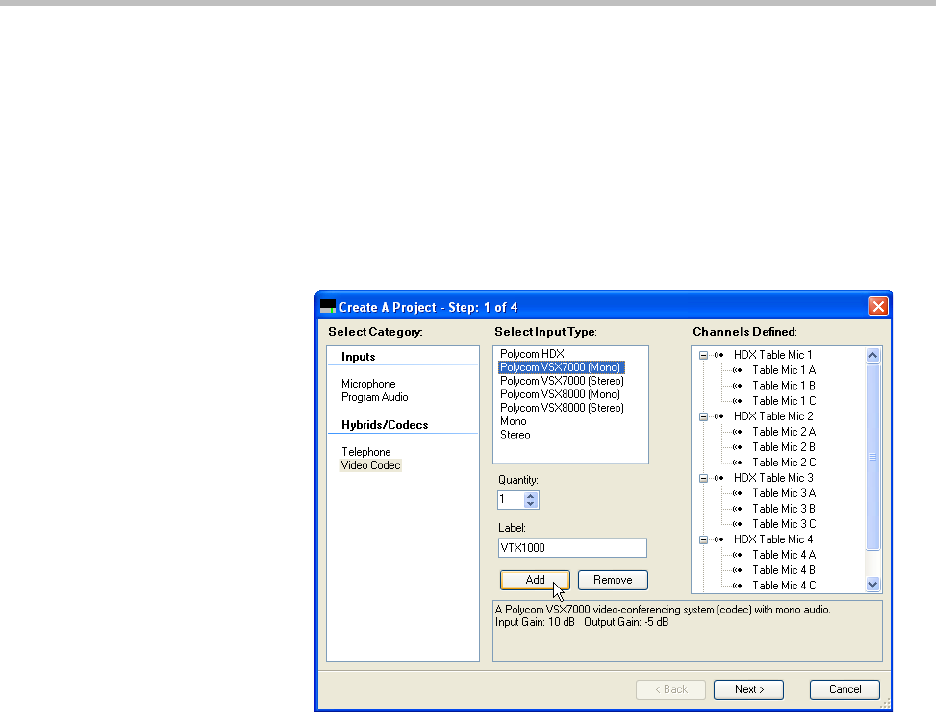

Step 1 - Select Inputs
Select four HDX digital tabletop microphones and a mono program audio
source. If the VTX1000 isn’t listed, select the VSX7000 video conferencing
system and adjust the labels as shown in the following figure.
