Advanced Applications
9 - 13

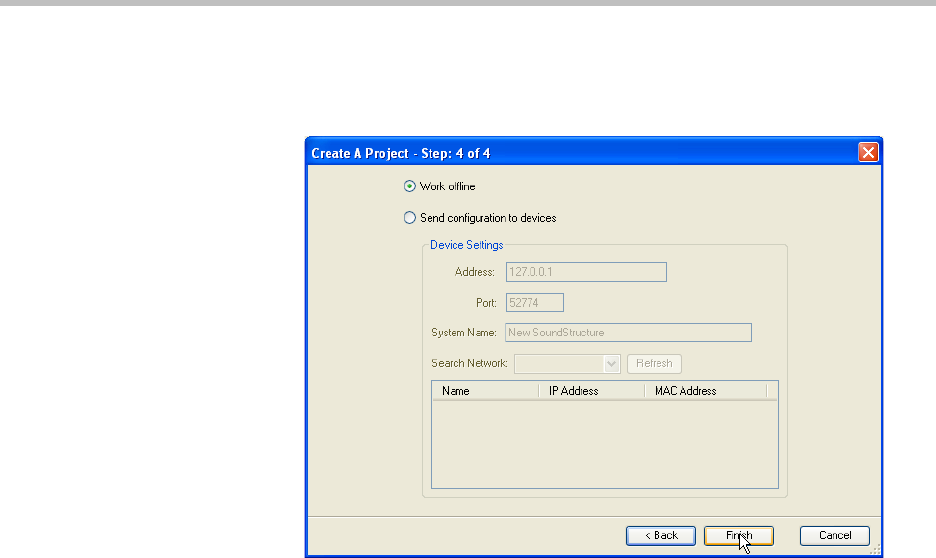

Step 4 - Work Offline Or Online
In this step offline operation is selected to create a file for later upload into a
SoundStructure C16.
Matrix Settings
Once the system has been designed, click the Matrix label in the project
window to view the matrix shown in the following figure.
The input virtual channels that include remote audio are the “VTX1000 In”
and “Program Audio”. These channels are routed to the “Amplifier” channel
so they can be heard in the local room.
